It is used in combination with a gas chromatograph

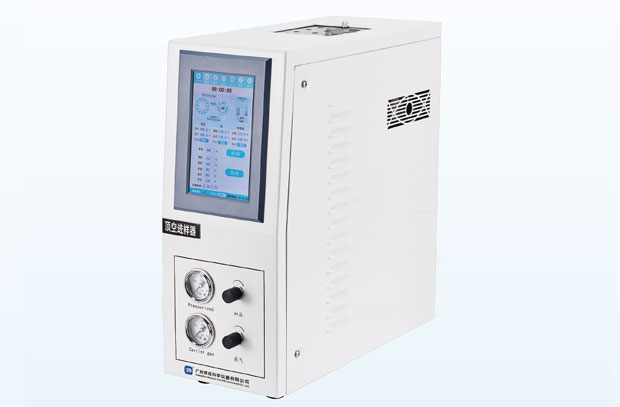

A headspace sampler is a sample pretreatment device for gas chromatographic analysis. Compared with other sample pretreatment methods such as solvent extraction and thermal desorption, it has the advantages of being simpler and more practical, having higher working efficiency, and better reproducibility of chromatographic analysis results. It is one of the preferred methods for gas chromatographic quantitative analysis.
1.The heating positions in the sample chamber are arranged in a matrix, with uniform heating, small volume and low power consumption.
2.All sample transmission pipelines and quantitative loops are made of imported highly inert deactivated pipelines, with no residue and no cross-contamination, ensuring high repeatability and accuracy of sample injection.
3.The combination of the six-port valve and the quantitative loop minimizes the gas volume, ensuring the injection precision, and the maximum operating temperature can reach 200°C.
4.The connection point between the six-port valve and the transmission pipeline is located inside the heating and heat preservation chamber, with no cold spots during transmission, ensuring the integrity of the sample.
5.Adopting the classic positive pressure sampling method, it can measure liquid or solid samples, with high detection sensitivity. It performs injection under normal pressure, and the baseline does not drift.
6.The six-port valve is driven by a motor, without the need for an external driving gas, which is safe and convenient to use.
7.With an integrated design, the whole machine has a compact structure. It is controlled by a microcomputer and has a full Chinese liquid crystal display, making the operation simple and convenient.
8.Equipped with a universal drive interface, it can automatically start the chromatograph and the workstation to work in coordination.
9.It can communicate with the workstation, and various parameters can be set on the workstation.
|
Item
|
Parameter
|
|
|
Touch screen display
|
Method parameter setting, real - time working status, running time, year - month - day - hour, etc.
|
|
|
Sample temperature control range
|
Ambient temperature - 250°C, adjustable in 1°C increments
|
|
|
Sample transfer line temperature control range
|
Ambient temperature - 220°C, adjustable in 1°C increments
|
|
|
Valve injection system temperature control range
|
Ambient temperature - 220°C, adjustable in 1°C increments
|
|
|
Injection pressurization range
|
0 - 0.4Mpa (continuously adjustable)
|
|
|
Headspace cells
|
12
|
|
Instrument Configuration
One main unit, one box of headspace vials,one pack of aluminum caps with rubber stoppers
User Provided
Nitrogen (purity 99.999%) ,pressure reducing valve
Deliver,Shipping And Serving
Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.
Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.
In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
