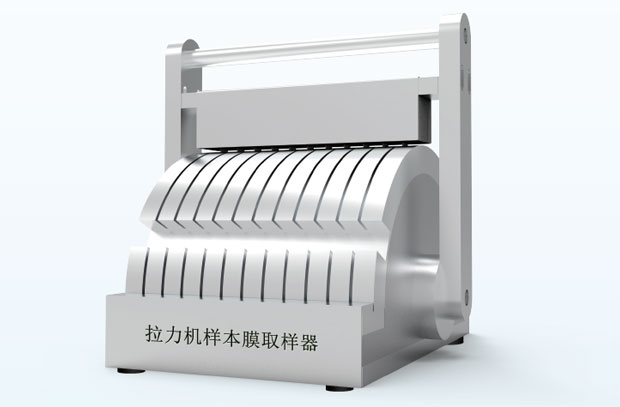

It is used for cutting samples of various materials such as plastic films and papers before tests like tension, peeling, and heat sealing. This product features a compact structure and easy operation. The edges of the cut samples are smooth without burrs, effectively avoiding test errors caused by poor sample cutting.
Place the sample on the round barrel. Ensure that the length of the sample is greater than the distance between the two clamping grooves. Clamp the sample with the fixture, and then rotate the handle to cut the sample.
1.It is convenient to operate, easy to use, and has a long service life.
2.The cut samples have precise dimensions, are free from damage, and have smooth edges without burrs.
3.The samples are fixed by stretching the spring, ensuring accurate and firm fixation.
4.Up to 10 samples can be cut at a time, meeting the needs of batch sample preparation.
5.The cutting width of the samples can be customized according to the customer's requirements.
|
Item
|
Parameter
|
|
Sample cutting size
|
15mm×210mm
|
|
Sample quantity
|
10 (single - layer)
|
|
Sample thickness
|
≤1mm (This product is not suitable for cutting hard materials like PVC.)
|
|
Dimensions
|
250mm×380mm×200mm
|
|
Instrument Configuration
|
One main unit ,one box of special blades
|
